A1LD1620 Diamond Expanded Metal Mesh is a high-quality expanded steel mesh featuring a large diamond pattern, engineered for applications that require strength, durability, and reliable performance. Manufactured from hot dip galvanised steel, it provides excellent corrosion resistance and is widely used for diamond expanded mesh, expanded steel mesh, security mesh, architectural mesh, screening panels, and industrial barriers.
Its one-piece expanded construction creates a rigid yet lightweight mesh that offers excellent visibility, natural ventilation, and efficient drainage while maintaining outstanding structural integrity. The diamond pattern makes it suitable for security fencing, façade screening, machine guards, partitions, equipment enclosures, and a wide range of commercial and industrial applications.
| Weight | 9.8 Kg |
| Dimensions | N/A |
| Material | Hot Dip Galvanised |
| Unit of Sale | Sheet |
| Material Thickness (mm) | 1.6 mm |

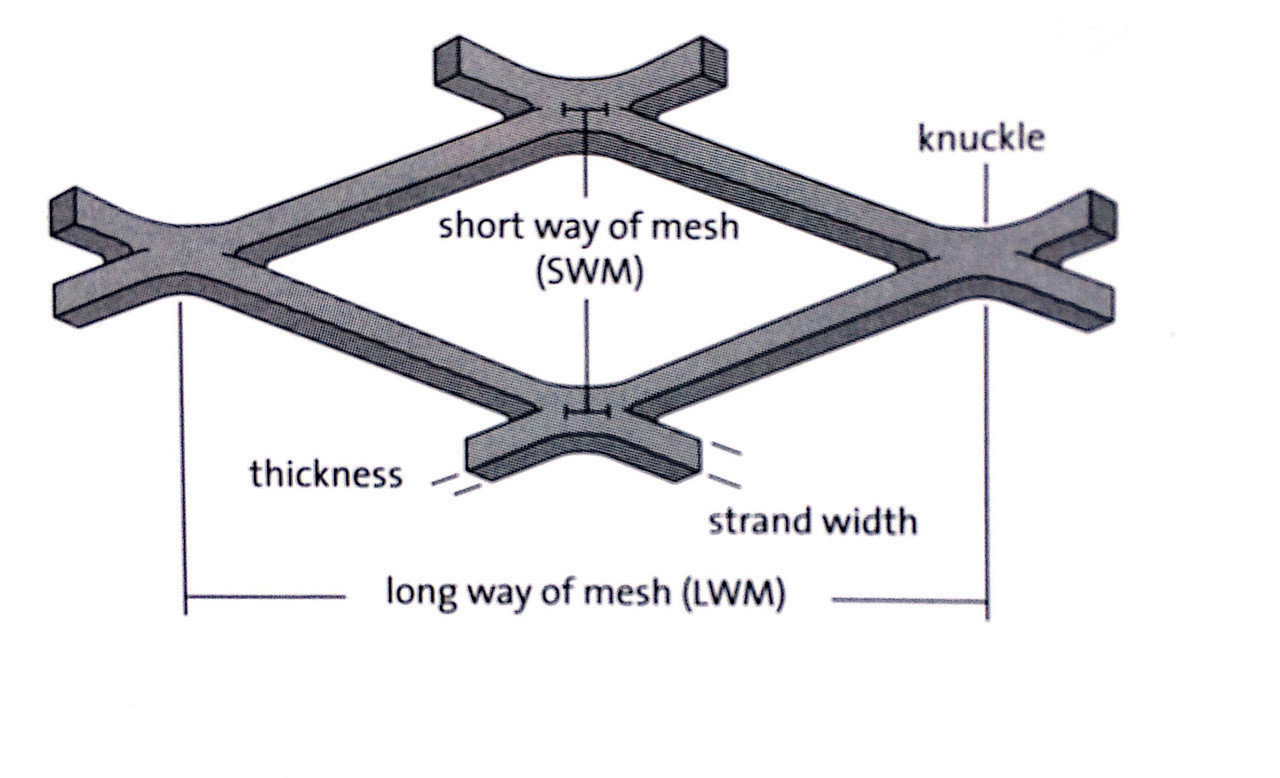

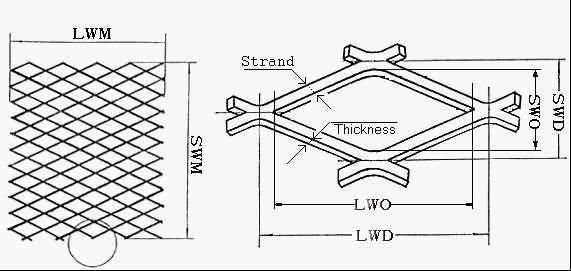

| Sheet Size LWM x SWM (mm) | 1220 x 2440mm, 2440 x 1220mm |
| LWD (mm) | 38mm |
| SWD (mm) | 15mm |
| LWO (mm) | 34mm |
| SWO (mm) | 12mm |
| Strand Width (mm) | 2mm |
Available in standard sheet sizes, the A1LD1620 Diamond Expanded Metal Mesh is designed for long-lasting indoor and outdoor performance. Custom sizes and finishes are also available to meet project-specific fabrication and installation requirements.
Material Finish: Mill finish/off the machine (uncoated or direct from the factory & will have residue from manufacture)
We recommend the product be cleaned, coated and finished as appropriate for the application.
