A1FM14 Walkway Mesh Grid Walk is a heavy-duty expanded metal mesh designed for industrial flooring, walkways, ramps, and access platforms. Manufactured from mild steel or hot dip galvanised steel, it delivers excellent strength, slip resistance, drainage, and durability. Common applications include walkway mesh, industrial flooring mesh, grid walk mesh, trailer ramp mesh, skeeter ramp mesh, and truck ramp mesh.
Expanded metal mesh provides a durable, cost-effective solution that combines high load-bearing capacity with excellent airflow and drainage, making it suitable for both indoor and outdoor environments.
| Weight | 14.4kg/SQM |
| Dimensions | N/A |
| Material | Mild Steel or Hot Dip Galvanised |
| Unit of Sale | Sheet |
| Material Thickness (mm) | 5mm |
| Sheet Size LWM x SWM (mm) | 750X3000mm, 900X3000mm, 1200X3000mm |

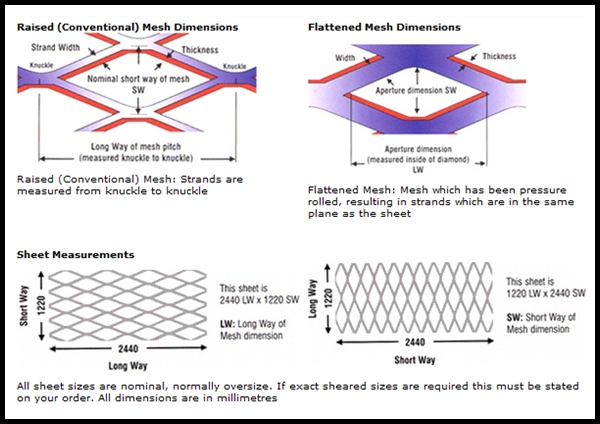

| LWD (mm) | 135mm |
| SWD (mm) | 45mm |
| LWO (mm) | 120mm |
| SWO (mm) | 32mm |
| Strand Width (mm) | 8mm |
Available in mild steel, hot dip galvanised steel, aluminium, and stainless steel, expanded metal mesh can be supplied in various sheet sizes, strand widths, and opening patterns to suit your project requirements. Custom sizes and finishes are also available.
Hot-dip galvanised product available as standard Galvanising to AS4680.
Stainless steel available on request ( Special conditions apply).
Quoted weights based on mild steel product
Standards Compliance AS 1657-2013: Fixed platforms, walkways, stairways and ladders - Design,
construction and installation.
Australian Standard AS1657 S4.5 now demands that any platform where people may have access to work beneath, must prevent a 15mm diameter ball passing through. Special profile which complies with this section of the standard with no additional protection required can supply on special order.
Material Finish: Mill finish/off the machine (uncoated or direct from the factory & will have residue from manufacture)
We recommend the product be cleaned, coated and finished as appropriate for the application.
