A1FM28 Walkway Ramp Mesh is a heavy-duty expanded metal mesh designed for industrial walkways, loading ramps, and access platforms. Manufactured from mild steel or hot dip galvanised steel, it delivers outstanding strength, slip resistance, and long-term durability for demanding industrial and commercial environments. Common applications include walkway mesh, ramp mesh, industrial flooring mesh, grid walk mesh, trailer ramp mesh, skeeter ramp mesh, and truck ramp mesh.
Its expanded metal construction provides a safe, non-slip walking surface while allowing excellent drainage, airflow, and debris clearance. The rigid one-piece mesh design offers reliable load-bearing performance, making it ideal for factories, warehouses, transport equipment, maintenance platforms, and pedestrian access systems.
| Weight | 85 kg |
| Dimensions | N/A |
| Material | Mild Steel, Hot Dip Galvanised |
| Unit of Sale | Sheet |
| Material Thickness (mm) | 5mm |

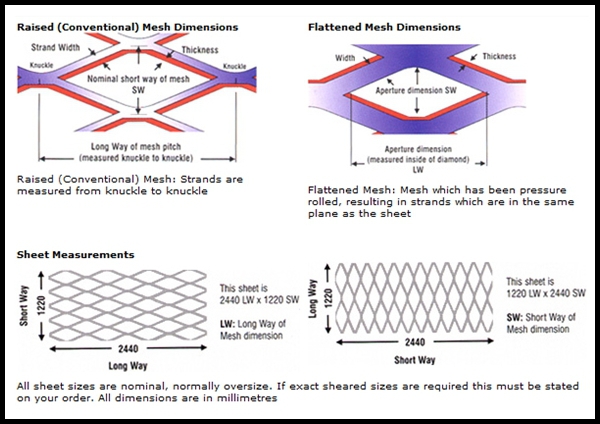

| Sheet Size LWM x SWM (mm) | 1220 x 2440mm, 2440 x 1220mm |
| LWD (mm) | 75mm |
| SWD (mm) | 30mm |
| LWO (mm) | 55mm |
| SWO (mm) | 14mm |
| Strand Width (mm) | 10.5mm |
Available in mild steel and hot dip galvanised steel, the A1FM28 is supplied in standard sheet sizes and can also be customised to meet specific project requirements. Custom finishes and sizes are available for a wide range of industrial and commercial applications.
Hot-dip galvanised product available as standard Galvanising to AS4680.
Stainless steel available on request ( Special conditions apply).
Quoted weights based on mild steel product
Standards Compliance AS 1657-2013: Fixed platforms, walkways, stairways and ladders - Design,
construction and installation.
Australian Standard AS1657 S4.5 now demands that any platform where people may have access to work beneath, must prevent a 15mm diameter ball passing through. Special profile which complies with this section of the standard with no additional protection required can supply on special order.
