A1FM19 Gridwalk Walkway Mesh is a robust expanded metal mesh engineered for demanding industrial flooring and elevated walkways. Its larger mesh profile provides excellent load-bearing performance, efficient drainage, and reliable slip resistance, making it suitable for ramps, platforms, and heavy-duty access systems.
The expanded metal construction creates a rigid, one-piece mesh that offers excellent airflow, drainage, and visibility while maintaining high structural strength for industrial environments.
| Weight | 68 Kg |
| Dimensions | N/A |
| Material | Mild Steel, Hot Dip Galvanised |
| Unit of Sale | Sheet |
| Material Thickness (mm) | 5mm |
| Sheet Size LWM x SWM (mm) | 750X3000mm, 900X3000mm, 1200X3000mm |

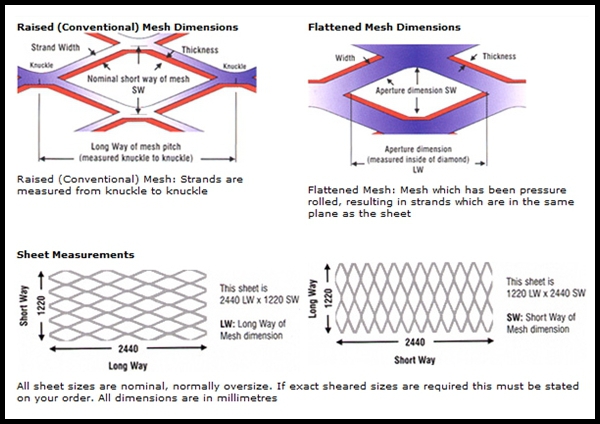

| LWD (mm) | 135mm |
| SWD (mm) | 45mm |
| LWO (mm) | 115mm |
| SWO (mm) | 27mm |
| Strand Width (mm) | 11mm |
Available in mild steel and hot dip galvanised steel, the A1FM19 can be supplied in standard sheet sizes, with custom sizes and finishes available to suit project requirements.
Hot-dip galvanised product available as standard Galvanising to AS4680.
Stainless steel available on request ( Special conditions apply).
Quoted weights based on mild steel product
Standards Compliance AS 1657-2013: Fixed platforms, walkways, stairways and ladders - Design,
construction and installation.
Australian Standard AS1657 S4.5 now demands that any platform where people may have access to work beneath, must prevent a 15mm diameter ball passing through. Special profile which complies with this section of the standard with no additional protection required can supply on special order.
Material Finish: Mill finish/off the machine (uncoated or direct from the factory & will have residue from manufacture)
We recommend the product be cleaned, coated and finished as appropriate for the application.
